Introduction to ATP Parking Solution
In today’s rapidly urbanizing world, efficient parking solutions are critical to maximizing space and enhancing user convenience. Mutrade Wide-Tower Parking System ATP (Automated Tower Parking) is a cutting-edge, fully automated parking solution designed to address the challenges of high-density parking in limited spaces. Offering up to 6 parking spaces per floor and a maximum of 15 floors, this system transforms small ground areas into high-capacity parking hubs, delivering comfort, safety, and sustainability for residential, commercial, and institutional projects.

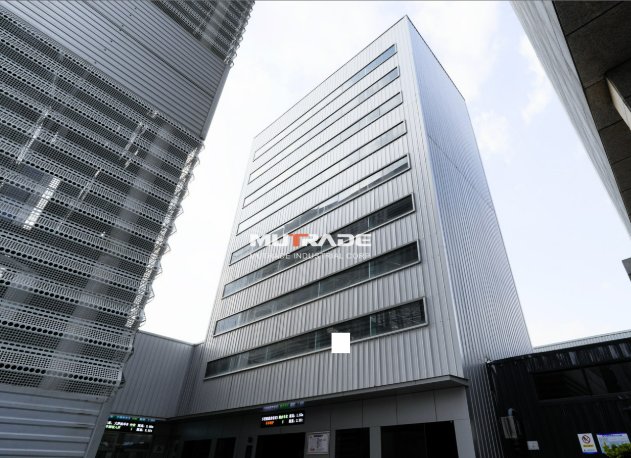

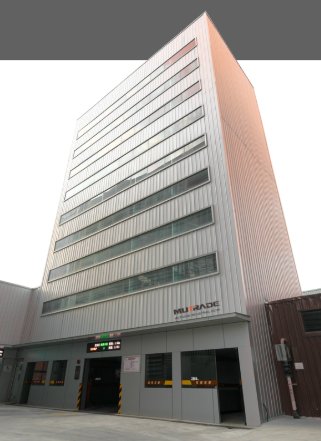

Overview of ATP Fully Automated Tower Parking System
ATP Wide-Tower Robotic Parking System is a pinnacle of Mutrade’s innovative engineering, designed to optimize parking in urban environments with constrained land availability. Unlike traditional parking structures that require extensive ramps and circulation space, ATP system leverages vertical space, accommodating up to 90 vehicles within a compact footprint ranging from 56 m² to 120 m². With the capacity to support both sedans and SUVs (vehicle length <5300 mm, tyre width <1900 mm, and weight up to 2,350 kg), the system is versatile and adaptable.
The wide-tower configuration allows for up to 6 parking spaces per floor across a maximum of 15 floors, making it ideal for projects requiring significant parking capacity without sacrificing valuable real estate. An optional turntable on the ground floor enhances maneuverability, ensuring seamless vehicle access. The high-speed lifting mechanism, with speeds up to 120 m/min, delivers platforms to the entrance level in an average of 120 seconds, significantly reducing waiting times compared to conventional platform-based systems. Operation is user-friendly, utilizing IC cards, touch screens, or manual controls, ensuring a hassle-free parking experience.
WIDE-TOWER PARKING
2300KG LOAD CAPACITY PER PARKING SPACE
7 LEVELS MIN
15 LEVELS MAX
70 CAR SPACES MAX PER SYSTEM
6 CAR SPACES PER LEVEL
THE CHALLENGE & THE SOLUTION
The Challenge: Urban centers face a growing demand for parking spaces amid shrinking available land. Traditional parking structures consume large areas, require costly ventilation and lighting systems, and expose vehicles to risks like theft, vandalism, or damage. Drivers often endure long searches for parking spots, leading to frustration and wasted time, while property developers struggle to balance parking needs with profitable land use.
The Solution: Mutrade’s Wide-Tower ATP parking system addresses these challenges with a compact, automated, and secure parking solution. By stacking up to 90 vehicles vertically in as little as 56 m², it drastically reduces the footprint compared to conventional parking lots. The system eliminates the need for ramps, stairways, and excessive lighting, lowering construction and operational costs. Automated operations enhance safety by restricting access to authorized users via IC cards, while advanced technologies reduce emissions by 60–80% by keeping engines off during parking and retrieval. ATP parking system not only maximizes parking capacity but also frees up valuable land for retail, residential, or other high-ROI developments, making cities smarter and more comfortable.
PRODUCT DISPLAY

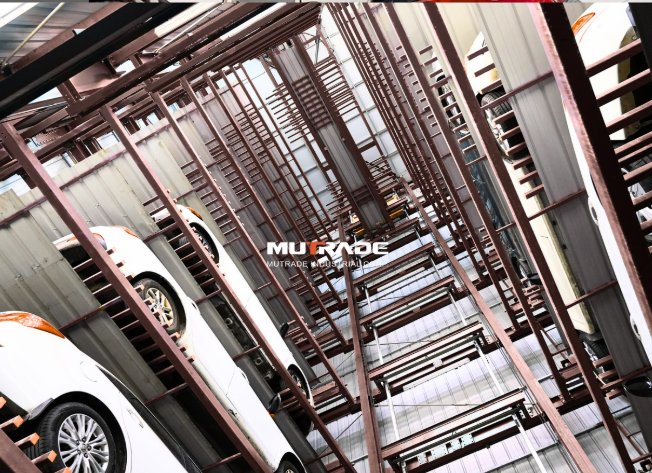

Space-Saving Design
Multilevel roboti parking system ATP redefines parking efficiency, accommodating up to 90 vehicles in a footprint as small as 56 m². With up to 6 spaces per floor and a maximum of 15 floors, it eliminates the need for wide ramps and circulation areas, making it perfect for urban projects with limited land. This compact design allows developers to allocate more space for profitable uses like retail stores or additional apartments.
Fully Automated Efficiency
Powered by a high-speed lifting mechanism (up to 120 m/min), ATP system delivers vehicles to the entrance level in an average of 120 seconds. The fully automated process minimizes waiting times and streamlines parking and retrieval, providing a superior alternative to traditional parking methods. Its robust design supports both sedans and SUVs, ensuring versatility for diverse user needs.

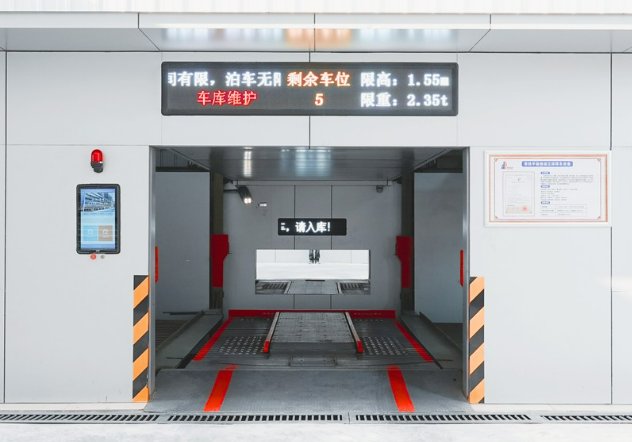

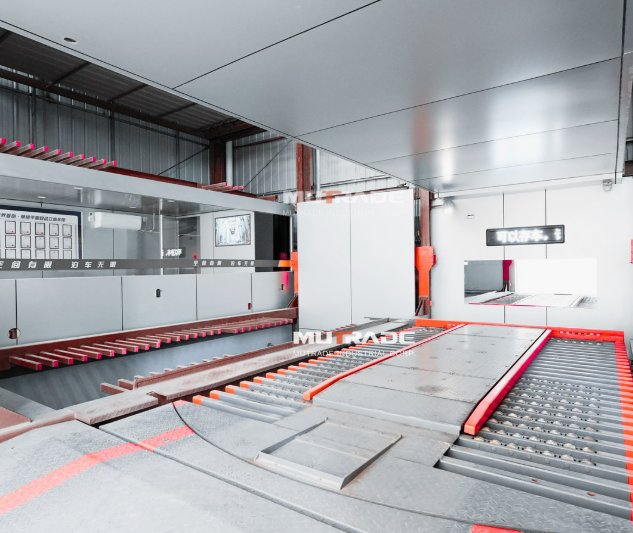

Parking Bay Area with Auto Door
ATP system features parking bays equipped with automatic doors that open and close upon detecting vehicle approach or operation completion. This enhances user convenience and safety, ensuring a smooth and secure parking experience. The auto door system integrates seamlessly with the overall automation, maintaining efficiency at every step.
Advanced Safety with Monitoring System
Safety is paramount in ATP fully automated parking system. A CCTV monitoring system, complete with a control room monitor screen, records and oversees the entire parking process, deterring theft and vandalism. The system’s design eliminates human intervention in parking bays, reducing the risk of damage, while an Emergency Stop button allows immediate deactivation in critical situations.
Seamless User Experience
ATP system prioritizes user comfort with a streamlined parking process. Drivers simply tap their preassigned IC card on the control panel, and the system handles the rest, delivering the vehicle directly to the entrance level. This eliminates the hassle of searching for parking spots or navigating complex structures, offering a stress-free experience for residential and commercial users alike.

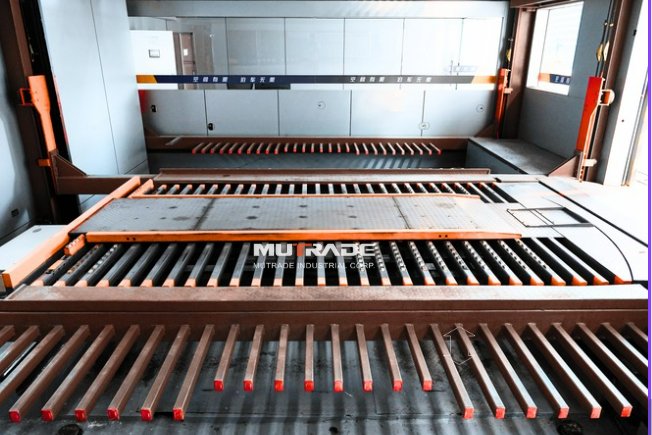

Combed Palletless Exchange
The ATP system employs a combed palletless exchange mechanism, which enhances operational efficiency by eliminating the need for traditional pallets. This innovative technology allows for faster vehicle handling, reduces maintenance requirements, and ensures precise positioning, contributing to the system’s reliability and speed.

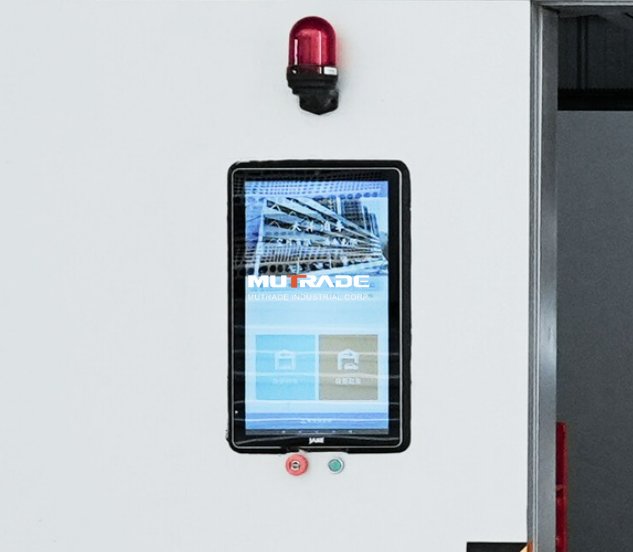

Smart Control with Built-in Control Panel
User-friendliness is at the core of the ATP system’s design. The built-in control panel supports multiple operation modes, including IC card tapping, touch screen inputs, or manual controls. For emergencies, an integrated Emergency Stop button provides immediate system deactivation. The smart control system, combined with a diagnostics feature in the PLC software, monitors real-time conditions and guides maintenance, ensuring uninterrupted performance.

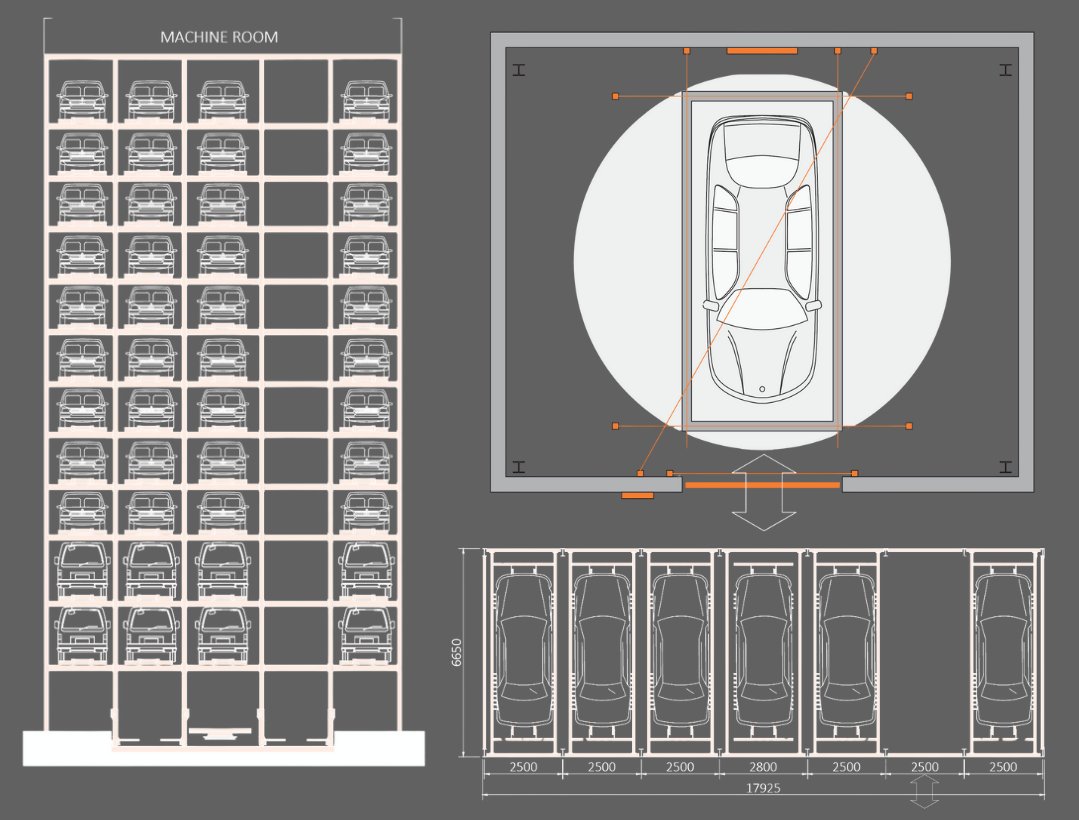

LAYOUT
*Drawing is based on specific project requirements and may not necessarily apply to other projects. For individual requirements, please contact the Mutrade team.
Mutrade’s Wide-Tower Parking System ATP is more than a parking solution—it’s a step toward smarter, greener, and more efficient urban living. Contact our sales team today to explore how the ATP system can transform your project and deliver unparalleled value.
