Faced with a growing fleet of luxury and heavy SUVs but constrained by static urban real estate, a premier New Zealand auto club required a high-density parking solution without extensive building modifications. This case study analyzes the deployment of 10 units of the Hydro-Park 2236 heavy-duty four-post lift by Mutrade. The article details the technical specifications (3600kg capacity, 2100mm platform width), installation challenges, and the resulting capacity increase, demonstrating how vertical expansion solved spatial limitations while maintaining operational elegance.
The Challenge: Confronting Spatial Scarcity in a Premium Environment
In the competitive landscape of high-end auto clubs, space is the ultimate premium. The client is a distinguished New Zealand facility housing a rotation of elite automobiles hit a critical capacity wall.
Real Estate Limitation: The club was situated in a premium urban zone with no room for horizontal expansion .
Vehicle Mix: The inventory consisted predominantly of modern heavy SUVs, 4x4s, and luxury vans, ruling out standard 2000kg-2500kg capacity lifts.
Aesthetic Constraints: The club refused to compromise its premium, minimalist aesthetic with bulky, industrial mechanical stackers .
The goal was not just to add spaces, but to engineer a "parking heaven" within the existing structural envelope—requiring a solution that was robust, safe, and visually discreet.
The Solution: Hydro-Park 2236 Heavy-Duty Platform
After assessing the site’s load-bearing capacity and height clearances, Mutrade specified the Hydro-Park 2236.
Unlike standard two-post service lifts, the Hydro-Park 2236 is a four-post, two-level parking lift . It was selected specifically for its ability to transform limited floor space into high-capacity vertical storage.
Why the Hydro-Park 2236 was the optimal choice for this New Zealand site:
Unmatched Load Capacity: With a lifting capacity of 3600kg, it easily accommodates the heaviest Land Cruisers, luxury SUVs, and American pickups that standard lifts cannot handle .
Heavy-Duty Dimensions: The usable platform width of 2100mm provides ample space for wide-body vehicles, preventing tire scrape and making parking stress-free for drivers .
Dual Functionality: The patented movable cover plates allow the lift to double as a service lift when necessary, adding functional value to the club’s workshop area .
Safety Integrity: The design incorporates multi-position mechanical safety locks on each post and a dynamic anti-falling system, ensuring that even in the unlikely event of hydraulic pressure loss, the upper vehicle remains absolutely secure .
Implementation: Installation, Logistics, and Specifics

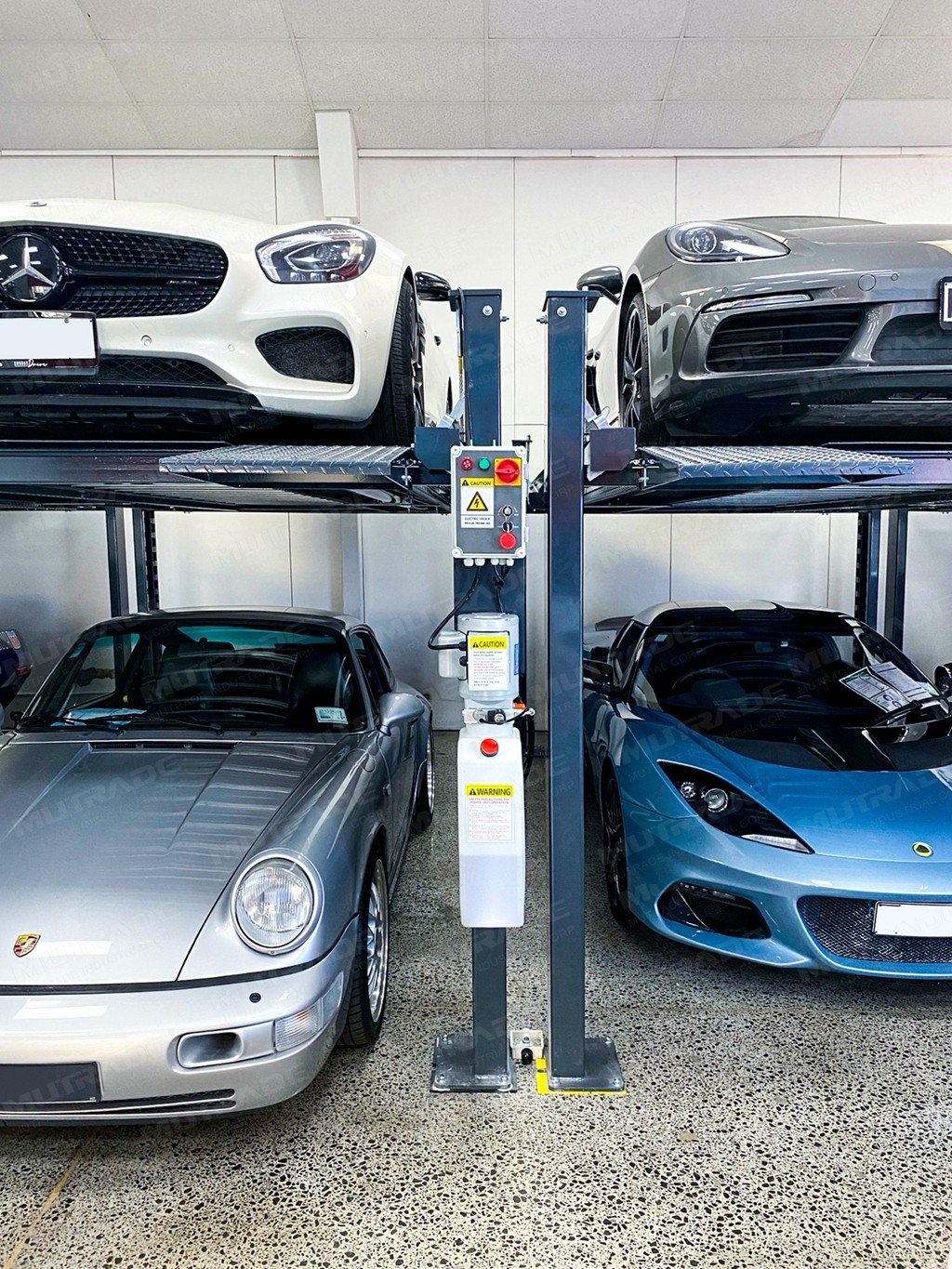

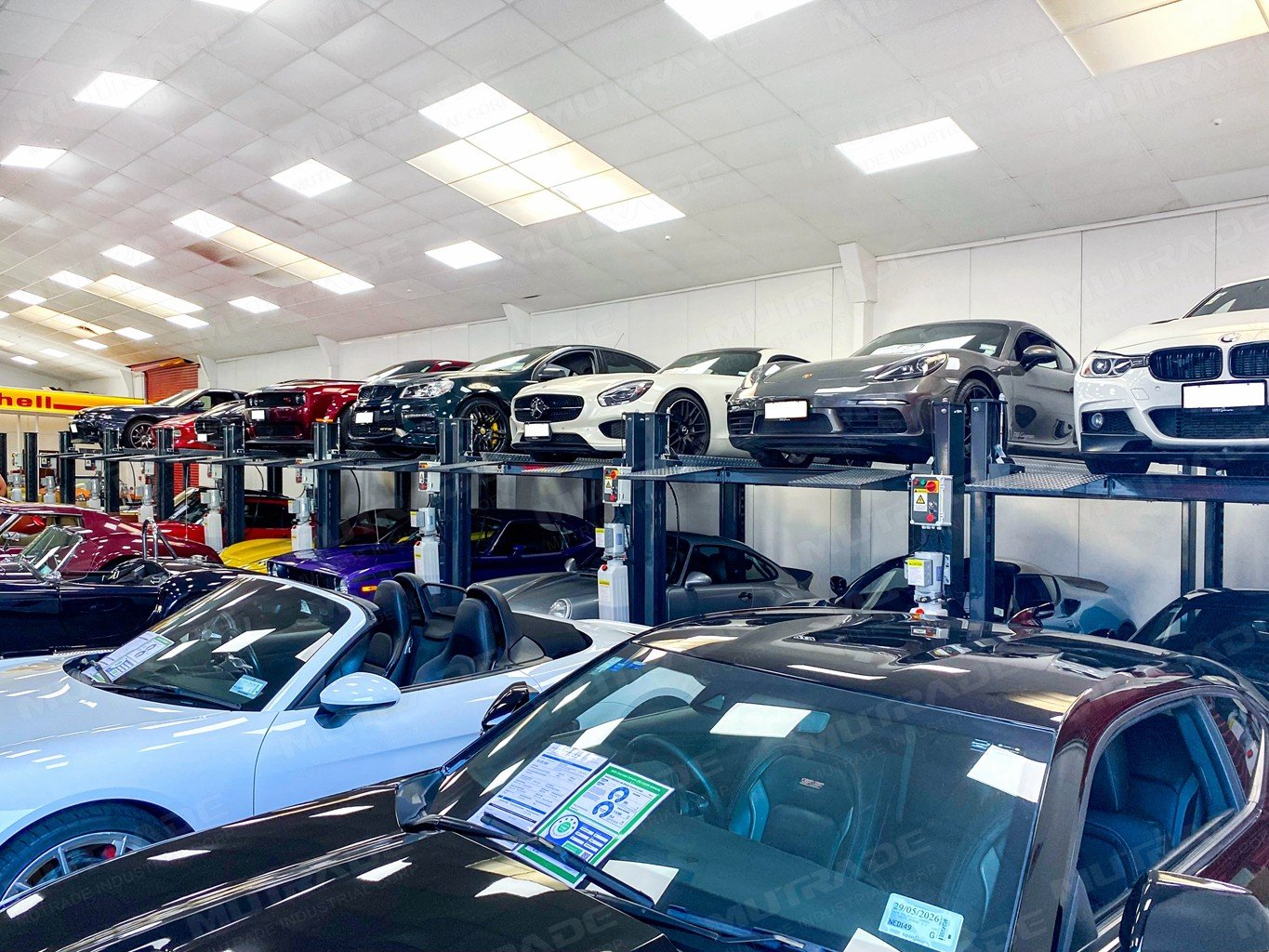

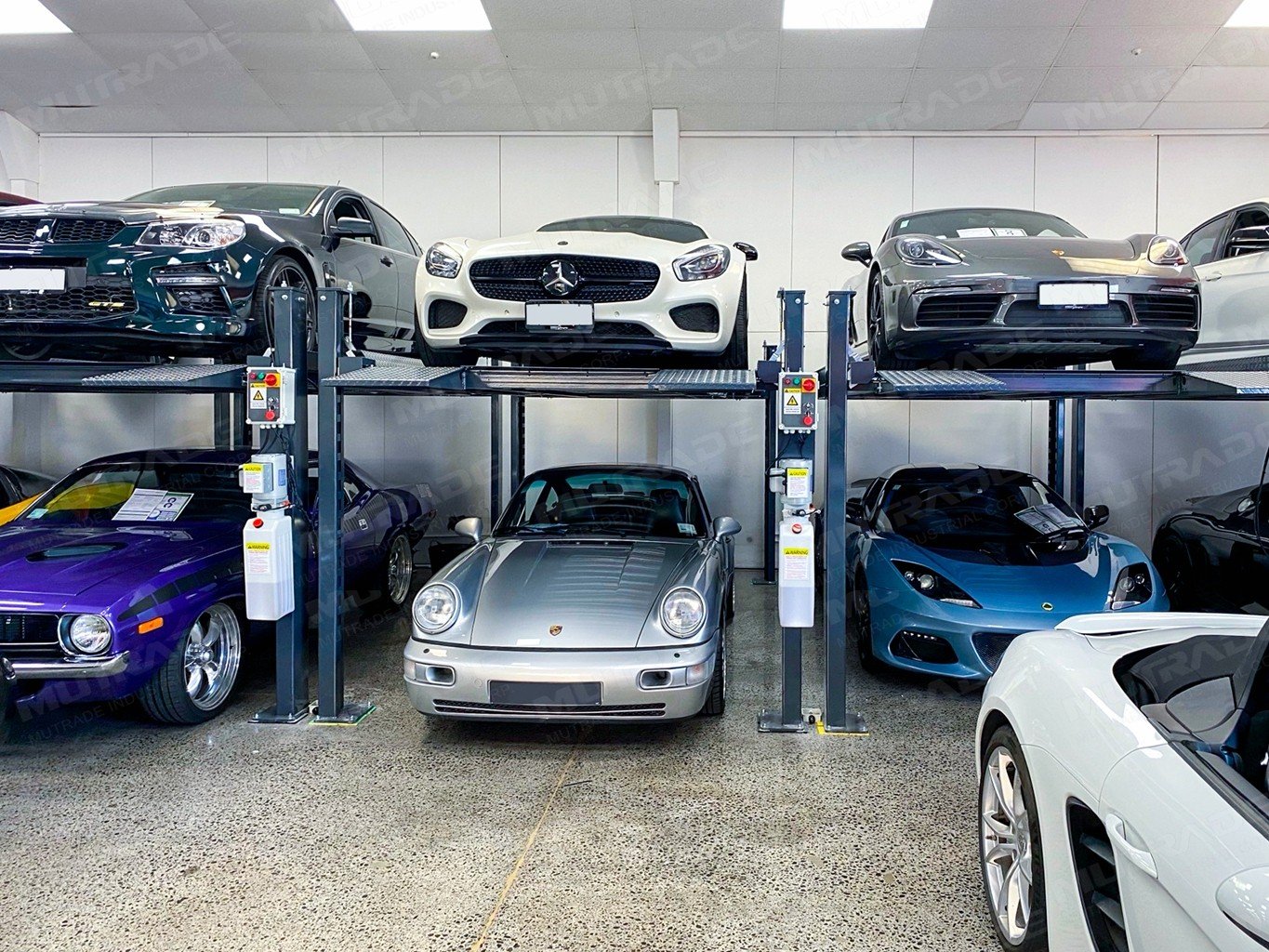

The project involved the deployment of 10 units of the Hydro-Park 2236.
Technical Implementation Details:
Foundation: The equipment requires a standard 150mm-200mm reinforced concrete floor. Unlike some puzzle parking systems, no deep excavation pit was required, reducing civil works costs.
Power Supply: The lifts operate on a standard 220V / 1 Phase power supply, utilizing a 2.2Kw hydraulic pump. This allowed the club to connect the units without expensive industrial electrical upgrades .
Lead Time & Logistics: Shipped from Mutrade’s headquarters in Qingdao, the 10 units were consolidated into sea freight containers. The bolt-together design of the four-post structure allowed for relatively fast on-site assembly by local technicians under remote Mutrade supervision.
The Result: Metrics and Aesthetics
The installation of the 10 Hydro-Park 2236 units resulted in a quantifiable transformation of the club's asset management:
300% Capacity Increase: By stacking vehicles two-high across 10 bays, the club effectively tripled its storage capacity in the same footprint .
Quick Retrieval: The hydraulic drive allows for raising and lowering times of <55 seconds, ensuring that valet staff can retrieve any vehicle in under two minutes .
Preserved Aesthetics: The four-post design, coated with high-quality Akzo Nobel powder, integrated seamlessly into the club’s existing interior, avoiding the "industrial cage" look of competing systems .
HVAC Compatibility: Because the lifts run on quiet hydraulic power, they did not interfere with the club’s climate control or exhaust systems.
Conclusion
The New Zealand auto club project demonstrates that effective space management is not about finding more land, but about engineering the right vertical solution. The Hydro-Park 2236 successfully provided the "parking heaven" the client envisioned — combining brutal strength (3600kg capacity) with the elegance required for a luxury environment.
For developers, car collectors, or facility managers facing similar space constraints, the Hydro-Park 2236 represents the industry standard for heavy-duty, two-level storage.
