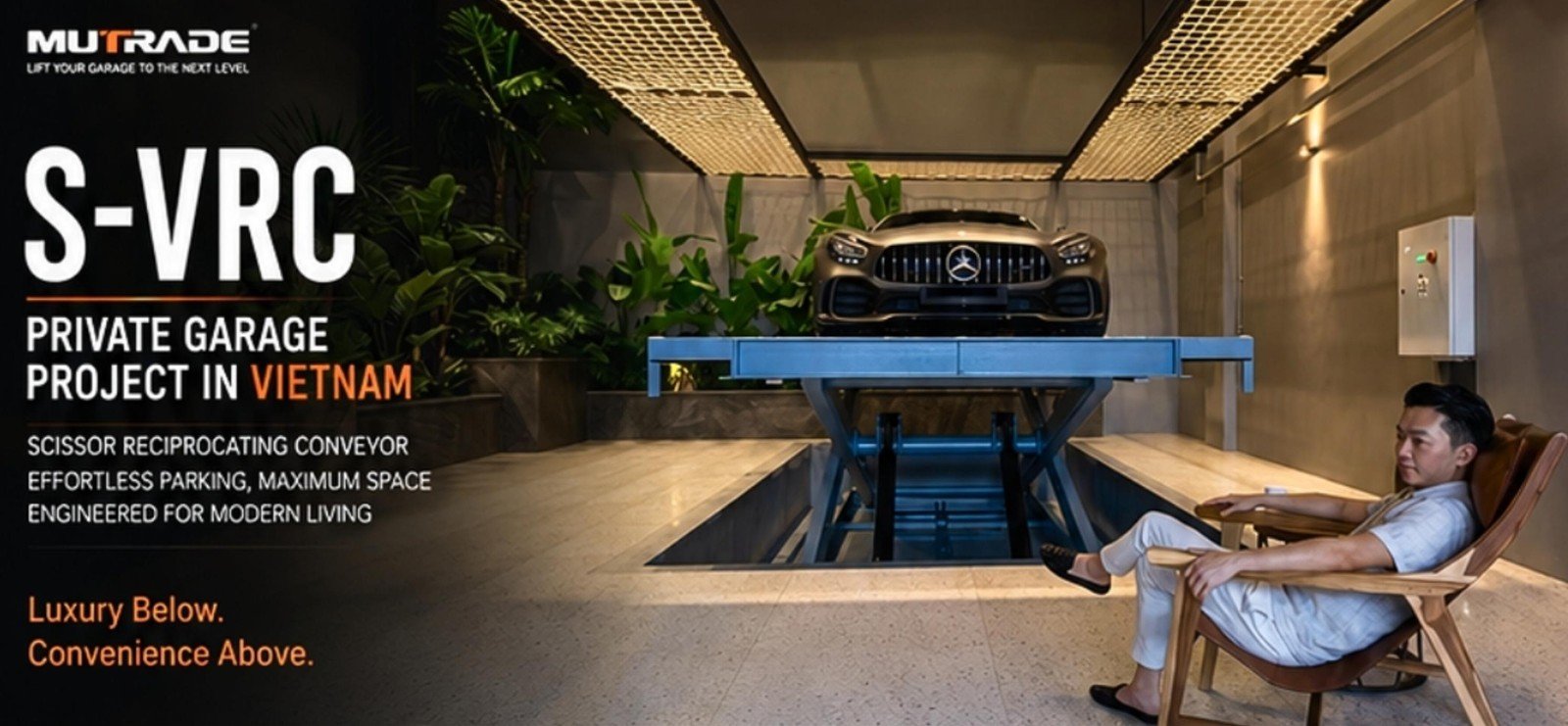

A Space-Saving Inter-Level Vehicle Lift Solution by Hydro Park Machinery

Hydro Park Machinery presents a private garage project in Vietnam featuring the S-VRC Scissor Vertical Reciprocating Conveyor, a customized inter-level vehicle lift designed to move cars smoothly between different garage floors.

In this project, the customer needed a premium solution for transferring vehicles into a luxury underground or lower-level garage without building a large concrete ramp. Instead of using valuable indoor space for a traditional ramp, S-VRC car lift provides vertical vehicle movement within a compact footprint, helping the garage remain clean, open, and visually refined.

The result is a modern private garage where vehicle access, space efficiency, and architectural aesthetics work together.

Project Overview

Project location: Vietnam

Application: Private luxury garage

Equipment: S-VRC Scissor Vertical Reciprocating Conveyor

Function: Inter-level vehicle transportation

Use case: Moving cars between entrance level and lower garage level

Design concept: Compact alternative to a concrete ramp

The S-VRC is especially suitable for private residences, luxury villas, car collections, dealerships, and facilities where a conventional ramp would take too much space or affect the overall interior design.

Why S-VRC Was Selected for This Private Garage

A traditional concrete ramp requires a large floor area and may not fit the design of a premium private garage. According to S-VRC technical documentation, this scissor-type car elevator is designed as a practical alternative to a concrete ramp, offering a smaller covering area, flexible arrangement, higher safety, and low maintenance.

For the Vietnam private garage, these advantages were especially important. The customer wanted to keep the garage environment elegant and functional while still allowing vehicles to move safely between levels.

S-VRC helped achieve this by providing:

• vertical car movement between floors;

• compact installation compared with a concrete ramp;

• customized platform size and lifting height;

• smooth hydraulic lifting with dual cylinders;

• clean integration into the garage floor;

• simple operation from stopping levels;

• a premium appearance suitable for luxury interiors.

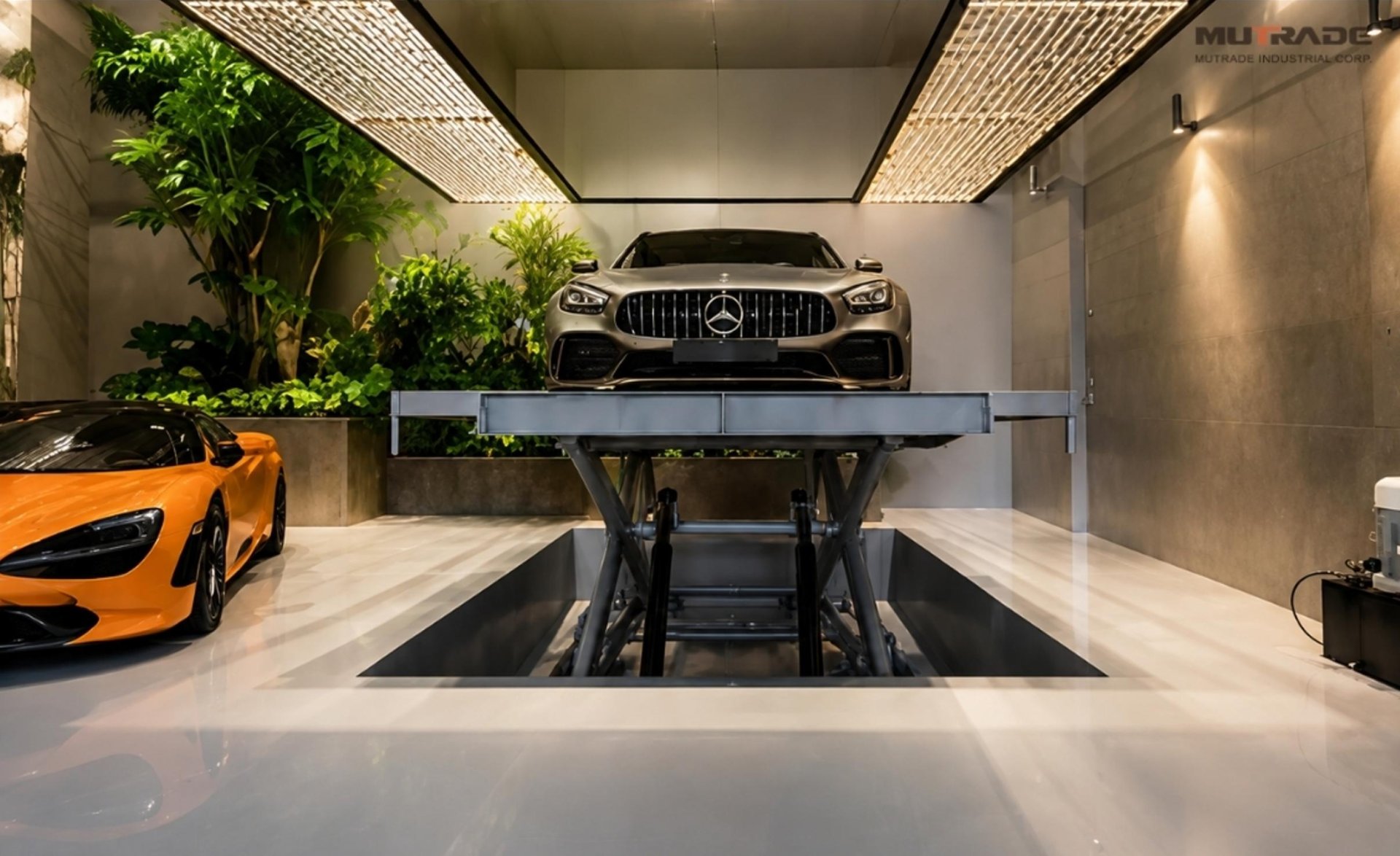

When the platform descends, the lifting structure can be hidden inside the pit, allowing the garage floor to remain neat and visually minimal.

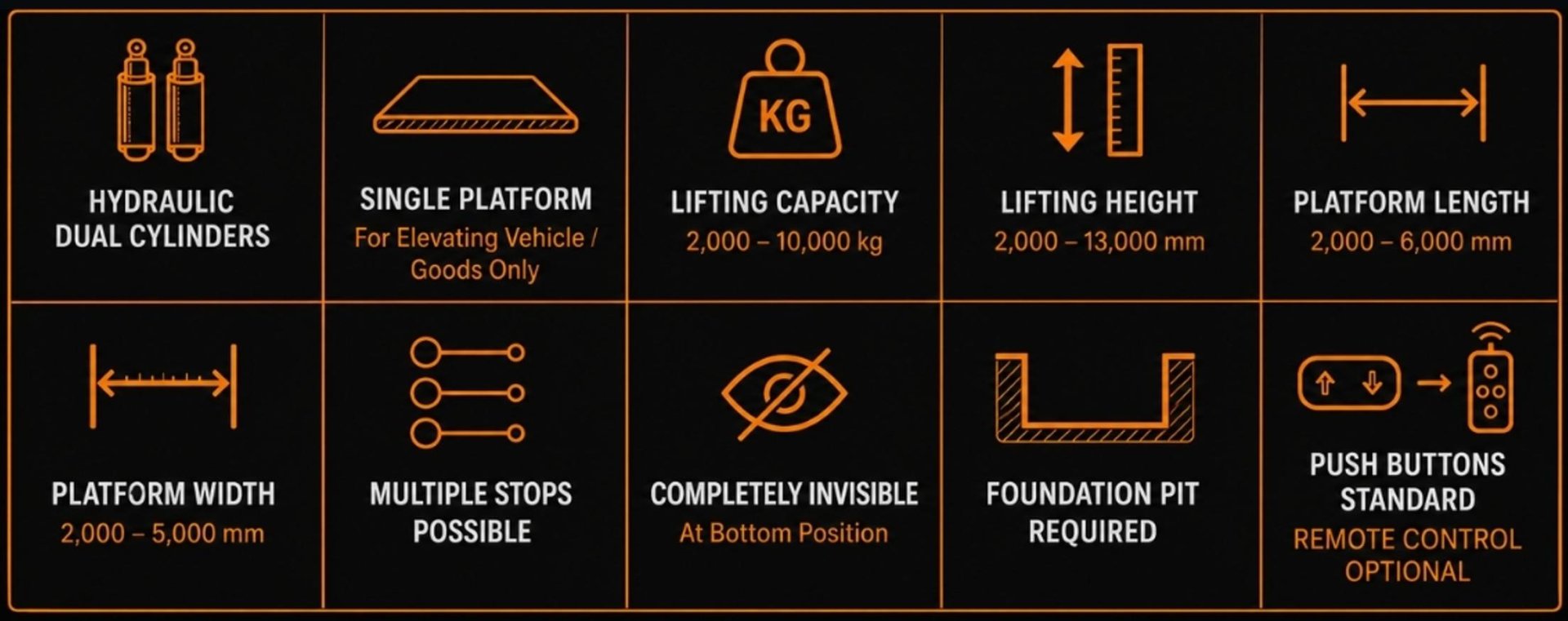

Technical Highlights

S-VRC is a highly customized vehicle lifting platform. Its technical parameters can be adapted according to the customer’s project requirements, including loading capacity, platform size, travel height, color, and layout.

Key technical features:

Lifting capacity: 2,000–10,000 kg
Lifting height: 2,000–13,000 mm
Platform length: 2,000–6,000 mm
Platform width: 2,000–5,000 mm
Drive system: Hydraulic cylinders
Operation: Push buttons as standard, remote controller optional
Power pack: 5.5 kW or above
Power supply: 208–480 V, 50/60 Hz, 3 phases

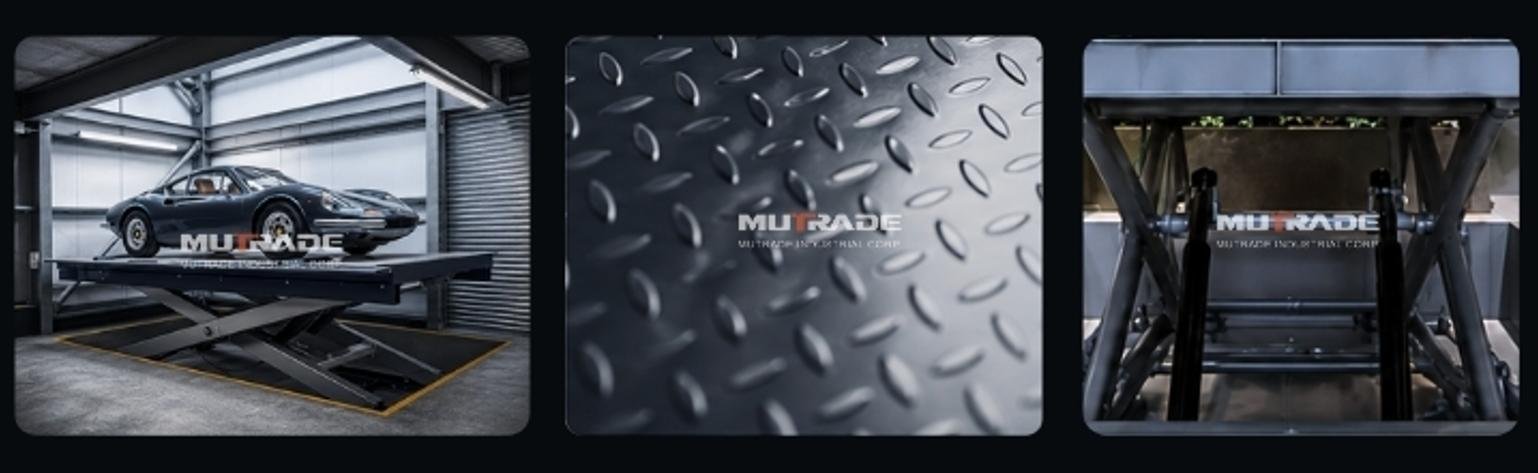

Platform material: Steel checker plate as standard, aluminum checker plate optional
Finishing: Powder coating or galvanized surface
Color: Bespoke

For reference drawings, the sample layout shows a platform length around 5500–5800 mm, platform width around 2800–3000 mm, lifting height around 5000 mm, and pit depth from 700–850 mm depending on the specific configuration. Final dimensions are always confirmed according to the actual project drawing.

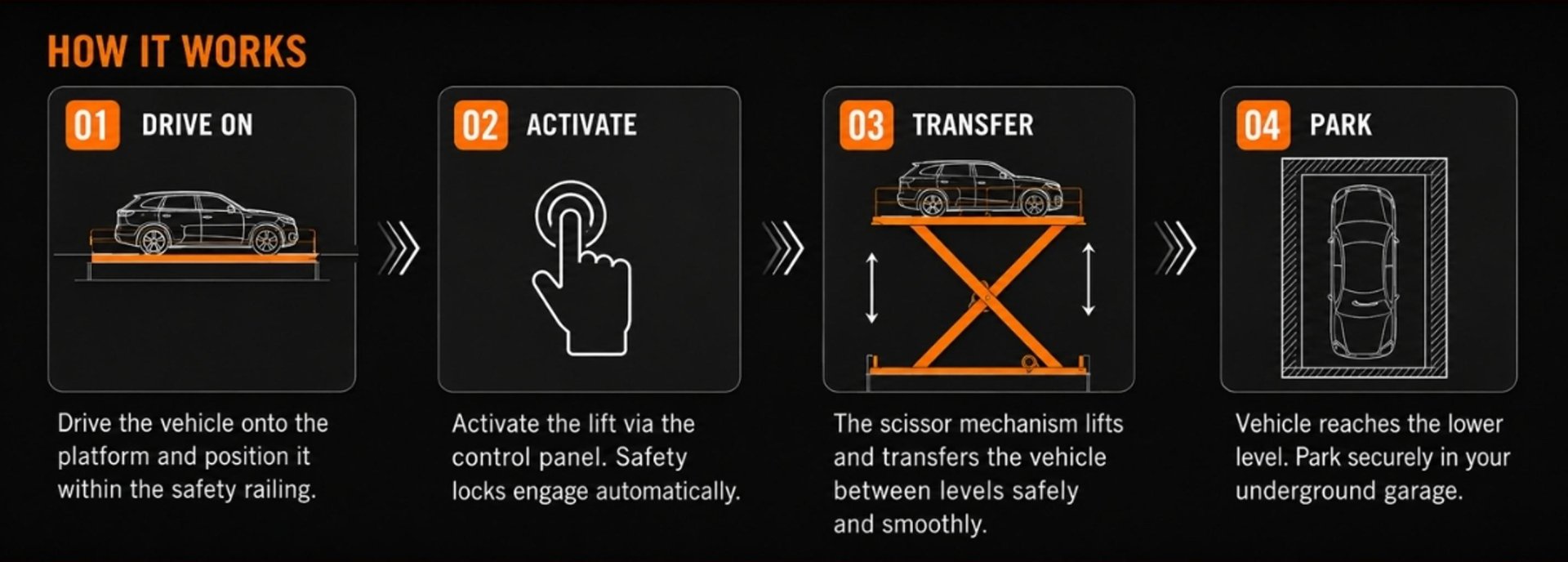

How the System Works

The operating process is simple and convenient.

First, the vehicle drives onto S-VRC platform at the entrance level. Then, the hydraulic scissor mechanism lowers or raises the platform between garage levels. Once the platform reaches the required stop, the vehicle can be driven into the garage or retrieved back to the entrance level.

Because the system can be called from stopping floors, the user can operate the lift conveniently from the relevant level. The structure is designed to be installed into a foundation pit, allowing the platform and mechanism to remain hidden when lowered.

This makes the S-VRC an elegant solution for private garages where the owner wants modern vehicle movement without exposing bulky equipment.

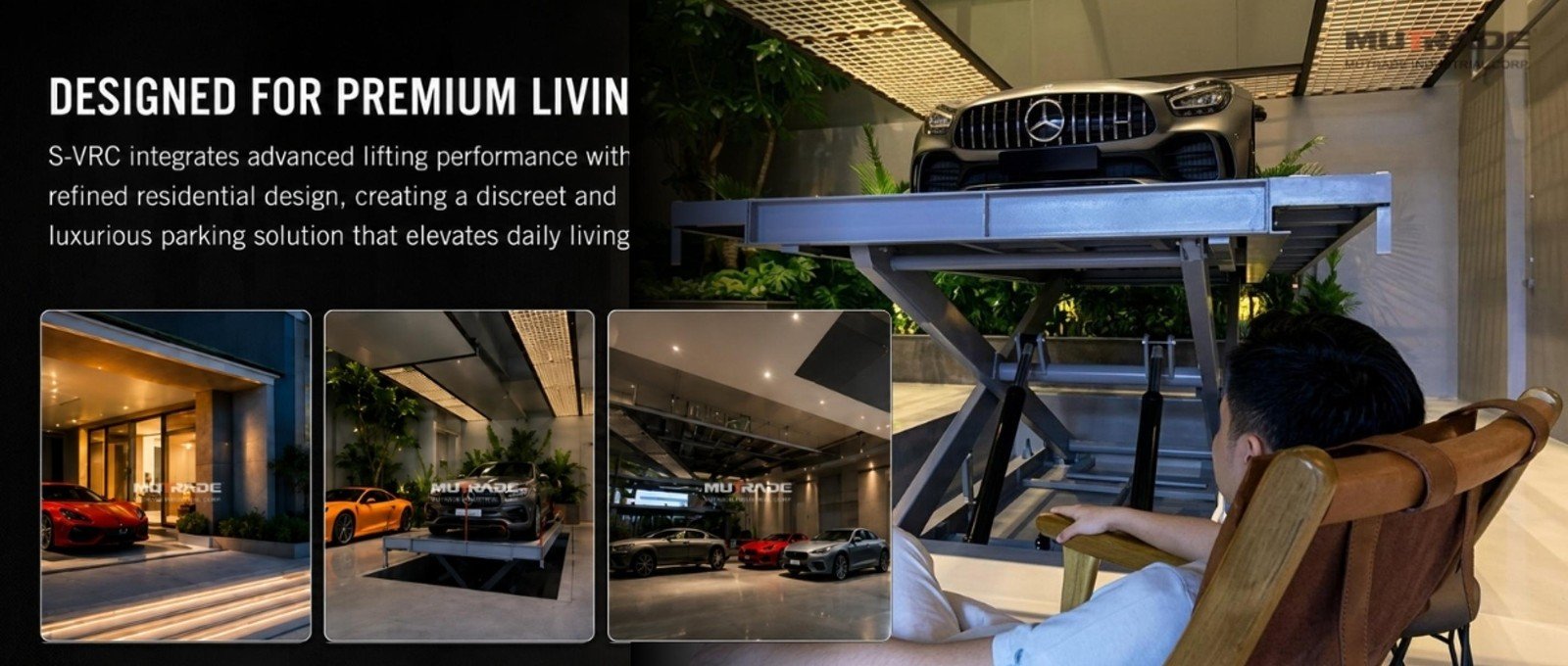

Designed for Luxury Private Spaces

The Vietnam project shows how mechanical parking and vehicle lifting equipment can be integrated into high-end residential architecture. The S-VRC does not only solve a technical problem; it also helps preserve the clean appearance of a luxury garage.

Its customized design allows the system to match the surrounding environment, including:

• platform dimensions;

• lifting height;

• color;

• finishing;

• control method;

• safety configuration;

• indoor layout requirements.

This flexibility makes the S-VRC suitable for private homes, villas, underground garages, premium auto storage areas, and showrooms where appearance matters.

A Smart Alternative to a Concrete Ramp

For many private garage projects, a concrete ramp can occupy too much space and limit the usable area of the building. It can also interfere with interior planning, vehicle circulation, and overall architectural design.

The S-VRC offers a different approach. It replaces the long ramp with a compact vertical lifting platform, helping the owner maximize usable space while maintaining convenient vehicle access between levels.

For projects where land area, building layout, or design aesthetics are important, the S-VRC provides a practical and premium solution.

Conclusion

S-VRC car lift project in Vietnam demonstrates how Hydro Park Machinery can support modern private garage design with customized inter-level vehicle transportation.

By using a hydraulic scissor vertical reciprocating conveyor instead of a traditional concrete ramp, the customer achieved a more space-efficient, elegant, and functional garage layout. With customized dimensions, strong lifting capacity, premium safety devices, and smooth operation, S-VRC is an ideal solution for luxury residential garages and high-end automotive spaces.

For private villas, underground garages, car collections, dealerships, and premium residential projects, Hydro Park Machinery S-VRC provides a smart way to move vehicles between levels while keeping the space clean, efficient, and visually refined.
