Unlock More Parking Spots with BDP-1 Sliding Platform
Struggling with tight parking spaces? Hydro Park's BDP-1 sliding parking platform turns "dead" areas — like driveways, corners, or spaces behind columns — into valuable extra spots. Watch it in action:
This clever sliding puzzle-style system can increase your parking capacity without any major construction. Ready to maximize your lot? Let's dive in.
Why Choose BDP-1?
The BDP-1 is a smart, semi-automated sliding platform that makes every square meter count:
Heavy-Duty Capacity: 2500kg total (625kg per wheel) – handles SUVs and sedans with ease.
Up to 100% More Spots: Perfect for residential, office, or commercial garages.
Flexible Layouts: Up to 3 rows front-to-back.
Quiet & Safe: Low-noise operation, CE certified, and fully compliant with DIN EN 14010.
Independent Access: No waiting for others – just slide and park!
How It Works – Simple & Genius
It's like a sliding puzzle for cars:

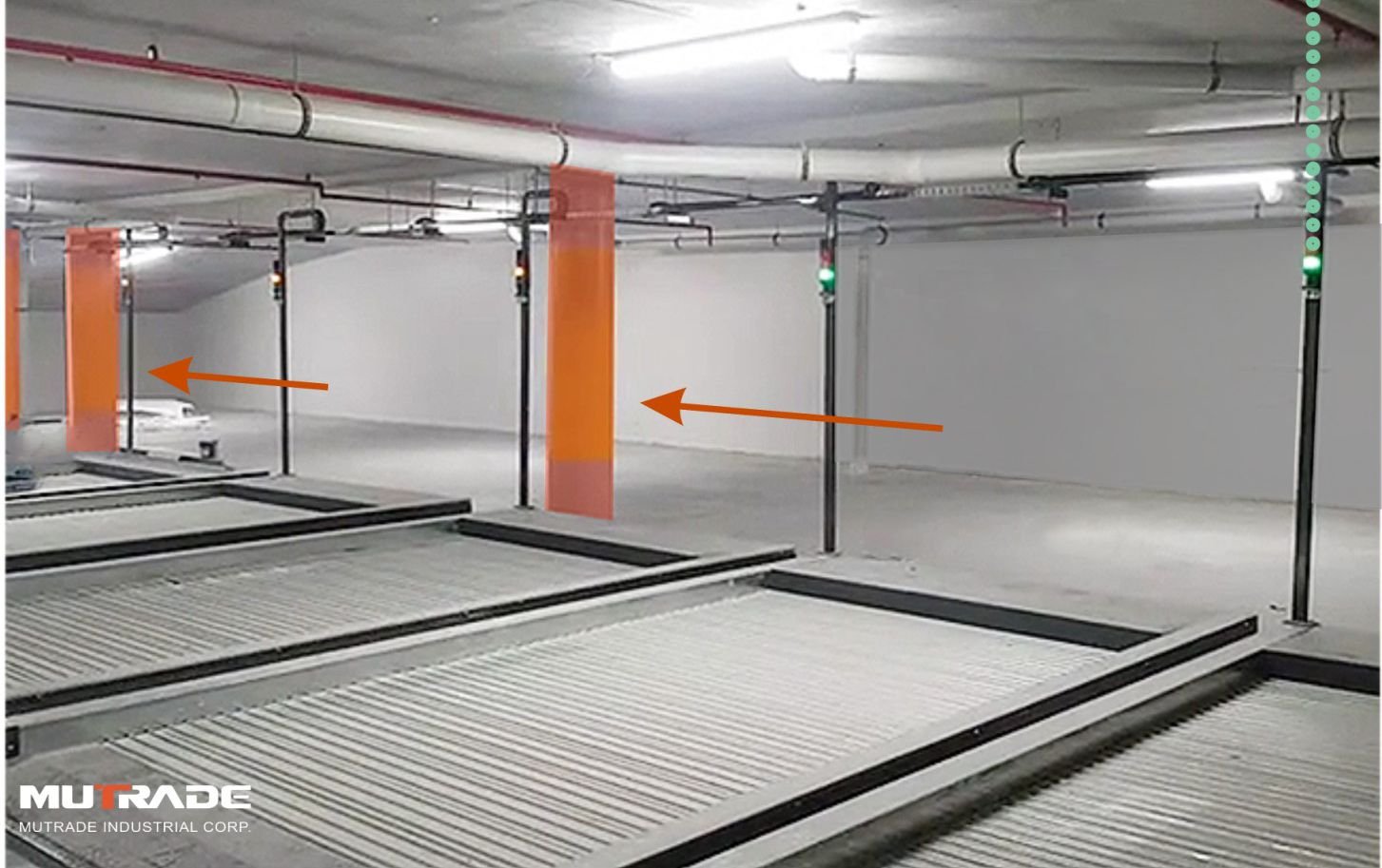

Platforms shift sideways to open hidden spaces behind columns or in lanes.
Leave one empty slot per row – this creates a path to move platforms and reach any car.
Control with a key switch (standard) or optional PLC for larger setups.
Multi-row configurations? No problem – effortlessly access every vehicle.
Key Dimensions at a Glance
Platform Length: 5000mm (with 300mm safety clearance front/back).
Recommended Width: 2100–2500mm net (fits vehicles up to 5000 × 1950mm).
Quick Width Guide:
| Net Platform Width | Overall Sliding Width |
|---|---|
| 2100mm | 2379mm |
| 2200mm | 2479mm |
| 2300mm | 2579mm |
| 2400mm | 2679mm |
| 2500mm | 2779mm |
Minimum 300mm gap between rows for smooth operation.
Built to Last – Premium Features
Galvanized guide rails and screws for long-life corrosion resistance.
Waving plates and protective covers to safeguard components.
Laser-cut precision and robotic welding for strength and beauty.
Super-low drive-on height and wheel stoppers for easy access.
Fine powder coating – looks great and feels gentle on tires.
Safety First
Packed with smart protections:
Proximity switches for precise positioning.
Photocell sensors to detect obstacles.
Motor thermal overload protection.
Optional light barriers and alarm lights/buzzer.
Emergency stop and PLC options for complex installs.
Quick Installation Notes
Concrete floor only (no asphalt).
Max ground tolerance: 5mm.
Vehicle clearance: at least 150mm below ceiling.
Customer handles lighting, electrical, and fire systems.
Ready to Unlock More Parking Spots?
BDP-1 is the cost-effective way to squeeze more cars into existing spaces — quietly, safely, and reliably.
Interested? Contact us for a custom layout, quote, or site-specific design. Let's turn your parking headaches into extra revenue!
