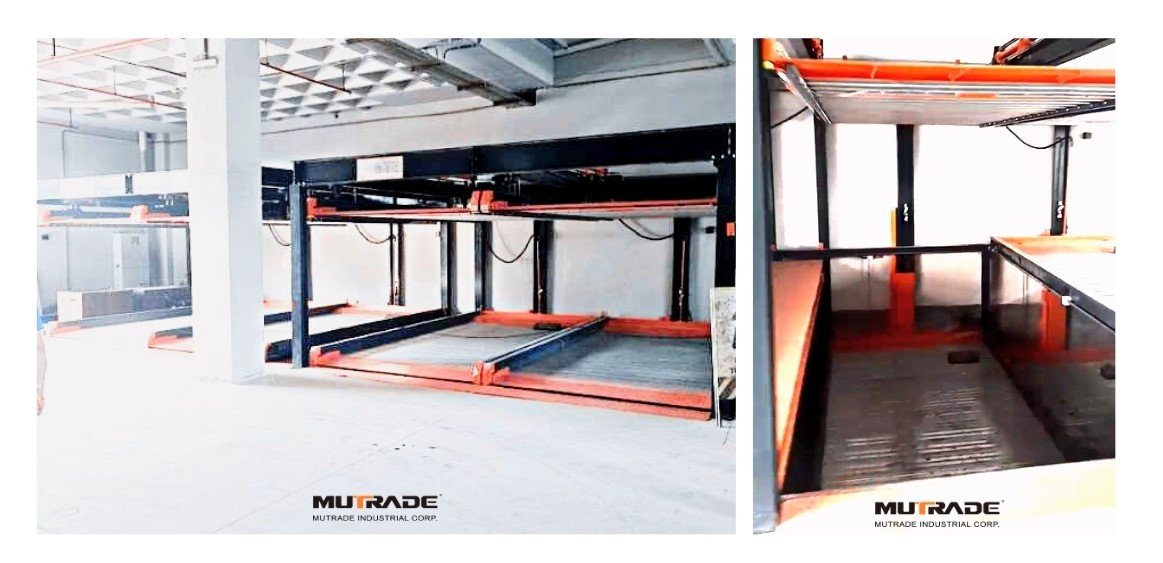

In the heart of Paraguay, a condominium owner faced the challenge of limited parking space. Seeking a solution to accommodate the growing number of vehicles, our client turned to a semi-automated puzzle parking system with pit – the Starke 3127. This innovative system promised to revolutionize parking, providing independent parking for 22 vehicles within the condominium premises.
Project: Condominium Parking
Product: Starke 3127
Location：Paraguay
Time: January, 2024
Parking spaces: 22
Load capacity: 2700kg per parking space
CHALLENGES FACED
The client encountered several challenges, including limited parking space availability for visitors and residents of his condominium and the need for efficient utilization of the existing parking area. Additionally, ensuring seamless operation and safety were paramount concerns for the client.
STARKE 3127: A PARADIGM SHIFT IN PARKING SOLUTIONS, OFFERING UNPARALLELED SPACE EFFICIENCY, VERSATILITY, AND CONVENIENCE
Starke 3127 puzzle parking system offers a unique solution by converting one conventional ground spot into three parking levels – one in the pit and two above ground. The platforms move vertically in the pit and upper levels, while the ground platforms slide laterally, optimizing space usage. This design not only maximizes parking capacity but also requires minimal construction effort.
PRODUCT IN NUMBERS
2700kg per parking space | 8 to 29 cars variable arrangements |
1800mm minimum pit depth | 3560mm minimum ceiling height |
WHY YOU WILL LOVE ST-3127
Compact and space-saving design: Starke 3127 is renowned for its compact design, effectively converting one conventional ground spot into three parking levels - one level in the pit and two above ground. The platforms of both the pit and upper levels move vertically, while the ground platforms slide laterally, always leaving one platform less on the ground floor. This unique structural design optimizes space utilization and minimizes construction requirements.
Versatility and Capacity: Starke 3127 offers versatility with options for different platform widths and pit depths to accommodate various vehicles, from sedans to SUVs. With a platform load capacity of 2700kg and variable arrangements possible, ranging from 3 to 10 grids wide (8 to 29 cars), the system caters to diverse parking needs.
Hydraulic Driven Efficiency: Hydraulic-driven operation ensures an excellent parking experience, providing smooth and efficient movement of vehicles. Multiple electrical safety devices are incorporated to ensure user safety at all times, making it a reliable choice for parking automation.
Smart Operation and Convenience: Starke 3127 offers smart operation through ID card or key fob access, enhancing convenience for users. With a usable platform width of 2200mm as standard and the potential to extend up to 2600mm, the system accommodates various vehicle sizes while maintaining ease of use.

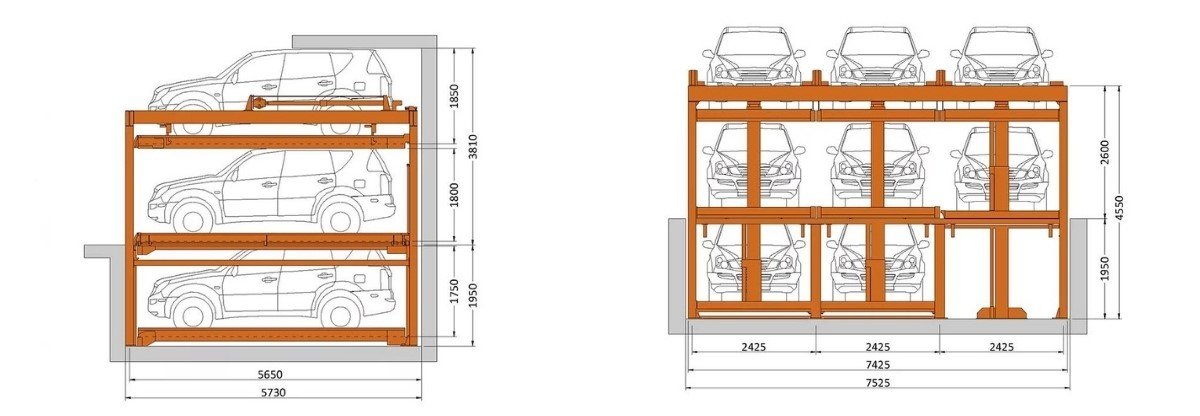

DIMENSIONAL DRAWING
*The dimensions are only for standard type, for custom requirements please contact our sales to check out.
The implementation of the Starke 3127 puzzle parking system has addressed the parking challenges faced by the condominium owner in Paraguay. By providing independent parking for 22 vehicles within limited space, the system has significantly enhanced convenience and efficiency for residents. With its innovative design and advanced features, the Starke 3127 exemplifies the future of parking solutions in urban environments.
